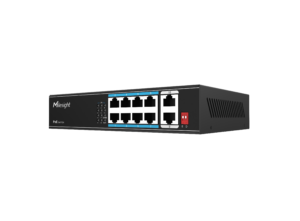

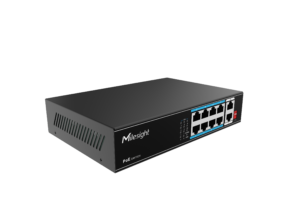

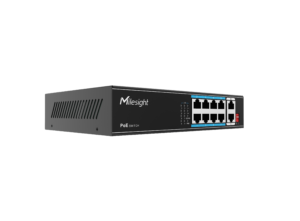

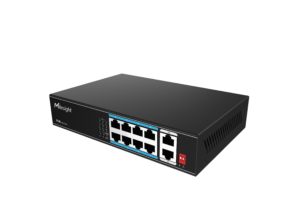

Milesight MS-S0208-EL – 8-Port PoE Switch

Ports 8X10/100Mbps PoE ports (RJ45) + 2X100Mbps uplink ports
Standard IEEE802.3 10Base-TIEEE802.3i 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3x
Switching Capacity 2Gbps (non-blocking)
Packet Forwarding Rate @64byte 1.488Mpps
Packet Forwarding Cache 1.25M
MAC 2K
Power Supply Built-in switching power supply AC 100~240V, 50-60Hz, 2.2A
PoE Standard IEEE802.3af/at
Max. PoE Power Max capacity: 120W
Max capacity for single port: 30W
Functional Switch Standard Mode: Port 1~10: 10/100Mbps auto-sensing @100 meters
Extend Mode: Port 1~8: 10Mbps @250 meters & Port 9~10: 100Mbps @100 meters
Note: When the switch status changes, PoE switch must be restarted for the switch function to take effect.
Indicator Power Indicator: PWR (green)
Network Indicator: Link (yellow)
PoE Working Indicator: PoE (green)
Functional Switch Indicator: EXTEND (green)
Cooling Fan –
Operating Temperature -20°∼55°C
Storage Temperature -40°∼75°C
Operating/Storage Humidity 10%∼90%RH(non-condensing)
Lightning Protection/ Protection Level Port lightning protection: 4KV 8/20us
Protection level: IP30
Dimensions 195mm(W)*130mm(D)*40mm(H)
Weight 0.7kg
Installation Method Desktop Type, Wall Mounted Type
