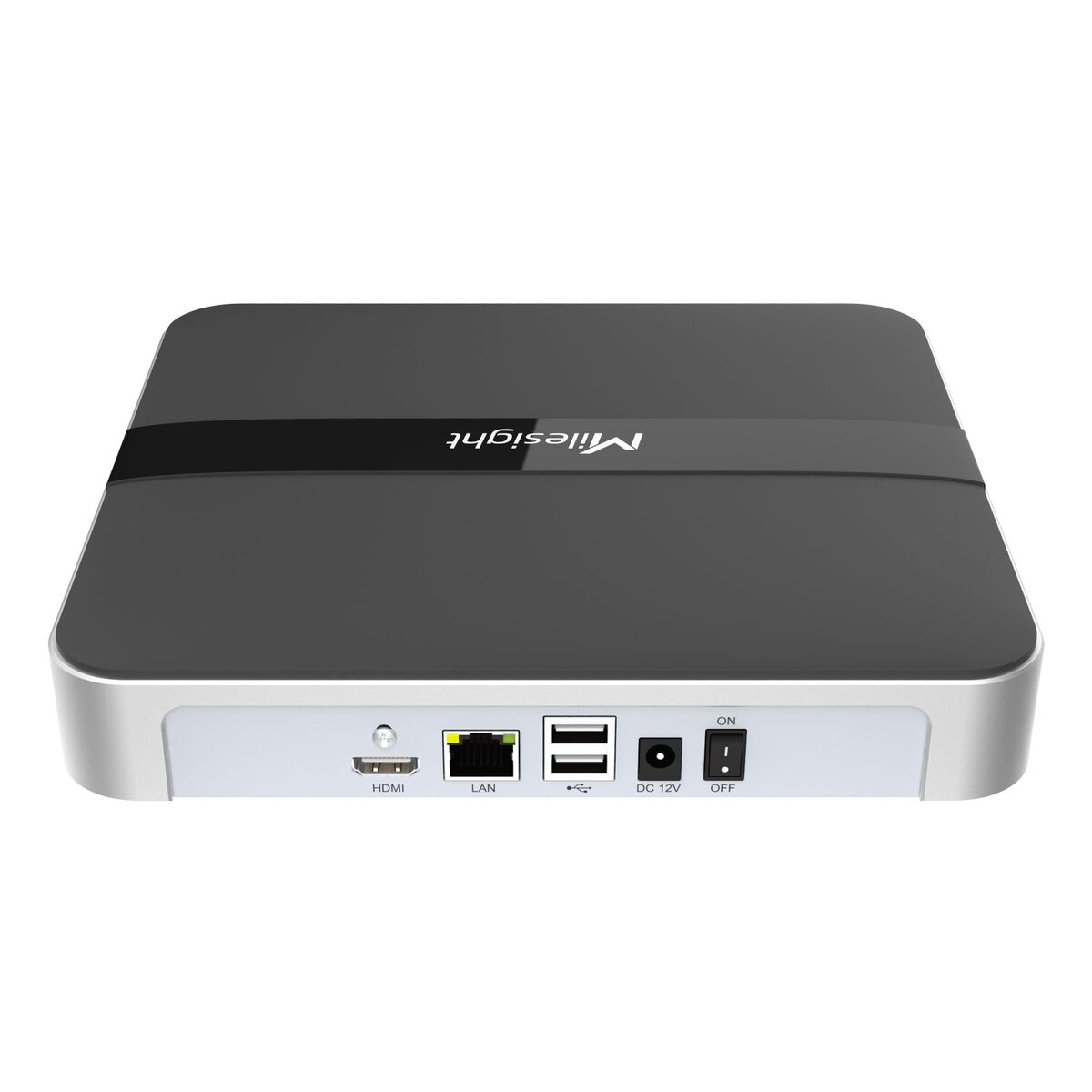

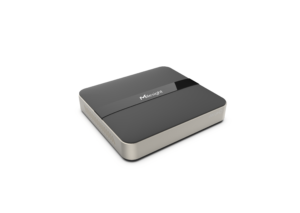

Milesight MS-N1004-UC – 4K H.265 Mini NVR 1000 Series

Input
Network Video Input 4-CH
Bandwidth Requirement 40Mbps (Incoming)40Mbps (Outgoing)
Output
HDMI Output 1-CH, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz. (HDMI supports Audio Output)
Dual Stream Support
Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback 1*(30fps @8MP), 1*(30fps @6MP), 1*(30fps @5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps @1080P), 4*(30fps @720P)
Format
Video Compression H.265+/H.265(HEVC)/H.264+/H.264
Audio Compression G.711/AAC/G.722/G.726
Sample Rate 8KHz/16KHz
Storage
SATA 1*SATA HDD (3.5”)
Capacity Up to 10TB capacity for each HDD
Record
Recording Type Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
Playback Type General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback
Backup Video backup, Image Backup
Network
Network Protocols IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS
Interface
Network Interface 1*RJ45 10/100Mbps
USB Interface 2*USB 2.0
General
Compatibility ONVIF, API
Advanced Function ANR
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed
Keyboard Control Milesight Keyboard(MS-K01)
Power Supply DC 12V 2A
Consumption ≤2.3W(Without HDD)
Working Conditions Temperature: -10℃∼+55℃ / Humidity: 10%∼90%
Dimensions 220mm(W)X200mm(D)X43.6mm(H)
Weight 0.19Kg
