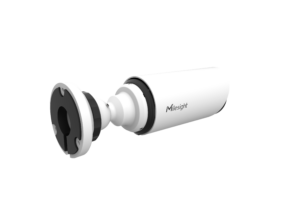

Milesight MS-C2963-RPЕ – AI Устойчива на атмосферни влияния мини булет мрежова камера

Camera
Name 2MP AI Weather-proof Mini Bullet Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 4mm/ 2.8mm/ 6mm @F1.6
Mount M12
Field of View H91°/D106°/V50°(4mm), H111°/D128°/V61°(2.8mm), H55°/D63°/V32°(6mm)
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 50m
S/N >55dB
Video
Max. Image Resolution 1920×1080
Primary Stream 60Hz: 60fps@(1920×1080, 1280×960, 1280×720, 704×576)
50Hz: 50fps@(1920×1080, 1280×960, 1280×720, 704×576)
Secondary Stream 60Hz: 60fps@(704×576, 640×480, 640×360, 352×288, 320×240)
50Hz: 50fps@(704×576, 640×480, 640×360, 352×288, 320×240)
Tertiary Stream 60Hz: 30fps@(1280×720, 704×576, 640×480, 640×360, 352×288, 320×240)
50Hz: 25fps@(1280×720, 704×576, 640×480, 640×360, 352×288, 320×240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Interface
Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1(Multi-interface Version)
Alarm I/O 1/1(Multi-interface Version)
Network
Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Intelligent Analytics
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, etc.;Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.;FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
System Compatibility ONVIF Profile G & Q & S & T, API
General
Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af);PoE (802.3af) / DC 12V±10% (Multi-interface Version)
Power Consumption 4W MAX, 9W MAX (With IR on)
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Weight 750g
Dimensions Φ76mmX214.5mm
Naming Convention
R – High Frame Rate (60fps)
P – PoE Supported
A/C/D/E – AI Series
