Input
Network video input 8 channels
Bandwidth Requirement 80Mbps (Inbound) 80Mbps (Outbound)
Output
HDMI Output 1-CH, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1920×1080/50Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz. (HDMI supports audio output)
VGA Output 1-CH, Resolution: 1920×1080/60Hz, 1920×1080/50Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz.
Dual Stream Support
Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF
Synchronous Playback 1*(30fps @8MP), 1*(30fps@6MP), 1*(30fps@5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps @1080P), 8*(30fps @720P)
Format
Video Compression H.265+/H.265(HEVC)/H.264+/H.264
Audio Format G.711/AAC/G.722/G.726
Storage
SATA 2*SATA HDD (3.5”)
Capacity Up to 10TB capacity for each HDD
Record
Recording Type Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis)
General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback
Backup Video backup, Image Backup
Network
Network Protocols IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS

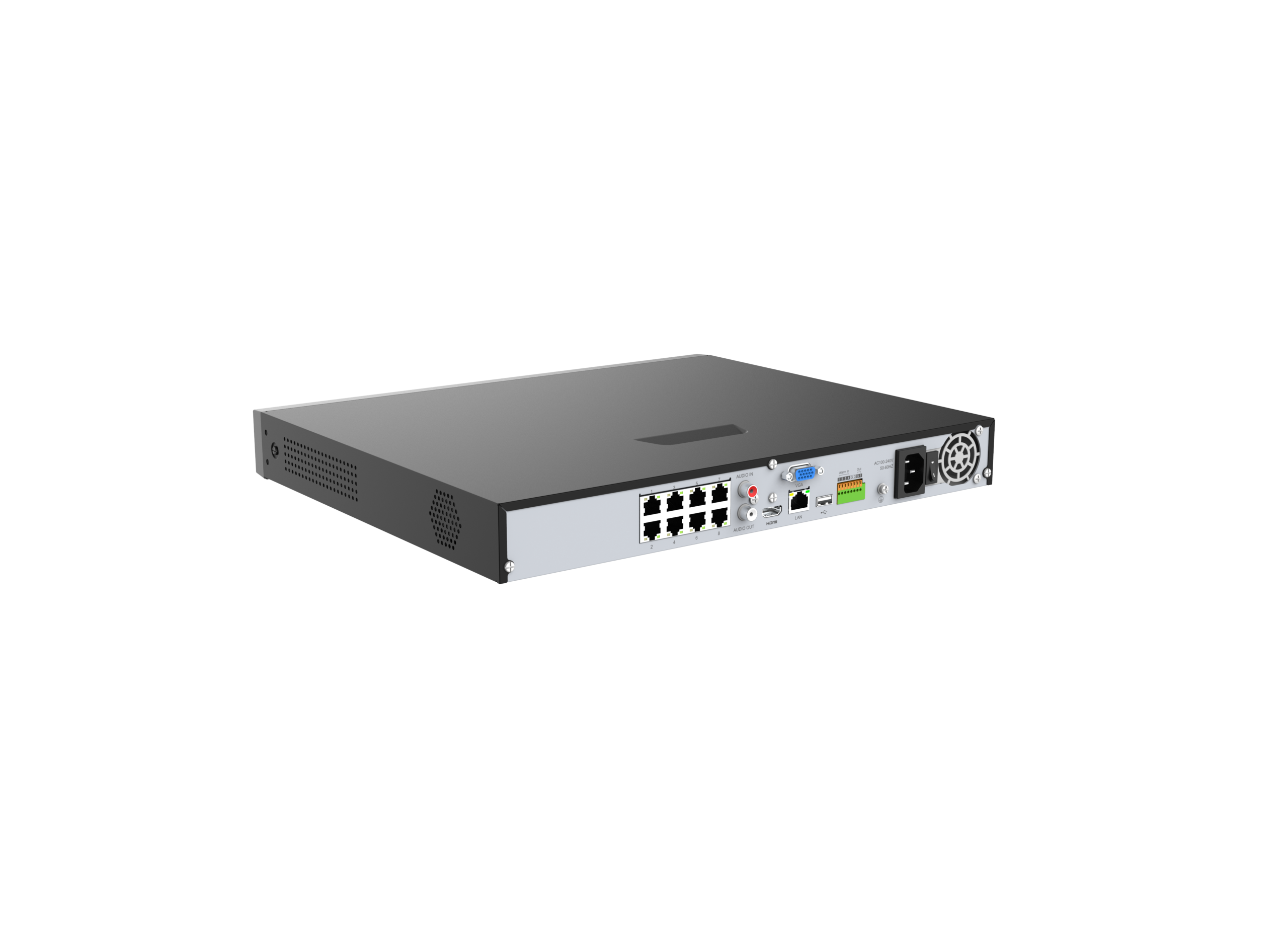

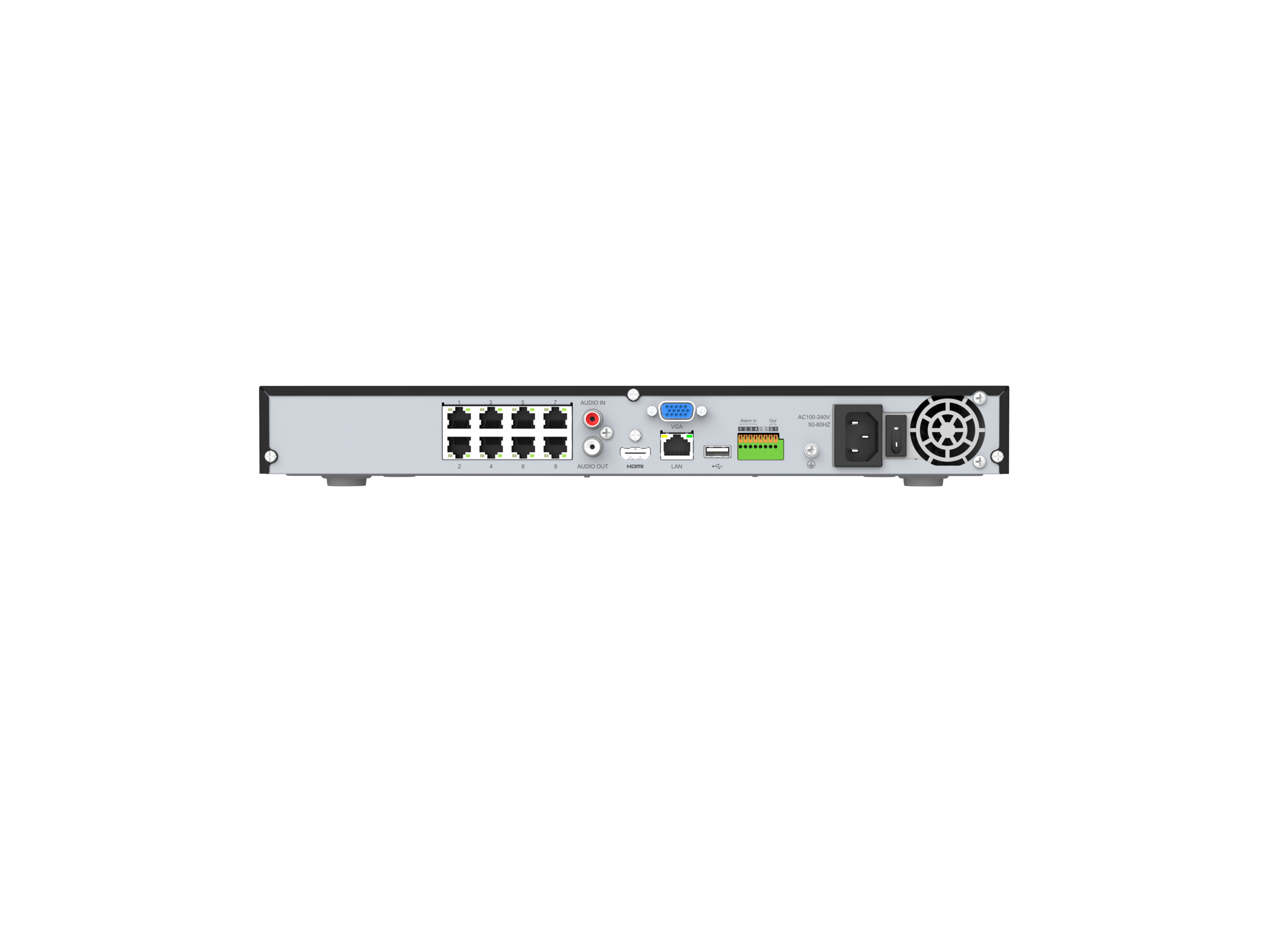

Interface
Network Interface 1*RJ45 10/100/1000Mbps
USB Interface 2*USB 2.0
Audio Input/Output 1 x RCA / 1 x RCA
Alarm Input/Output 4-CH/1-CH
PoE Interface
8 x RJ45 10/100Mbps interfaces
Power Output ≤120W
Supported Standards IEEE 802.3af/at
General
Compatibility ONVIF, API
Advanced Function ANR
Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting
Keyboard Control Milesight Keyboard (MS-K01)
Power Supply AC 100V∼240V 50Hz∼60Hz
Electricity consumption ≤9W (without HDD, without PoE enabled)
Operating Conditions: Temperature: -10℃ to +55℃ / Humidity: 10% to 90%
Dimensions 380mm (W) x 317.6mm (D) x 51.8mm (H), Rack Mountable Chassis (1.0U Standard)
Weight 2.6Kg
