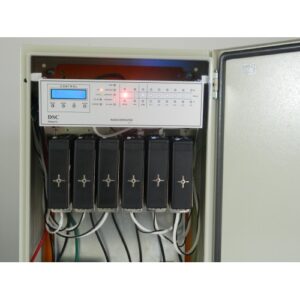

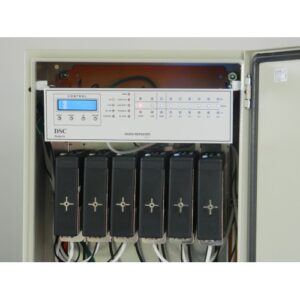

Access Link Central Station

The Access Link central station supports up to six individual channels for receiving encrypted information from sites or repeaters. It operates in conjunction with a computer and DSC MFCS client software or other Monitoring centre software. The protocols used are “Contact ID” or “SIA”, and communication is carried out via TCP/IP or RS232 interface. The configuration is composed of separate modules and is assembled according to individual client needs.

Option for mounting up to six individual modules for receiving signals from radio transmitters or repeaters;
Compatible with the following protocols: KP Electronics – LARS and LARS1, Electronics Line – KEL, Informer, PPE and PPE1;
Frequency range: 140-170 MHz and 400-470 MHz;
Channel spacing: 12.5 KHz;
Sensitivity: 118dB at 12dB SINAD;
Power supply: 220V, plus 12V accumulator for continuous operation;
Temperature range: -15°C to +45°C;
Cables, aerials, and connectors included.
