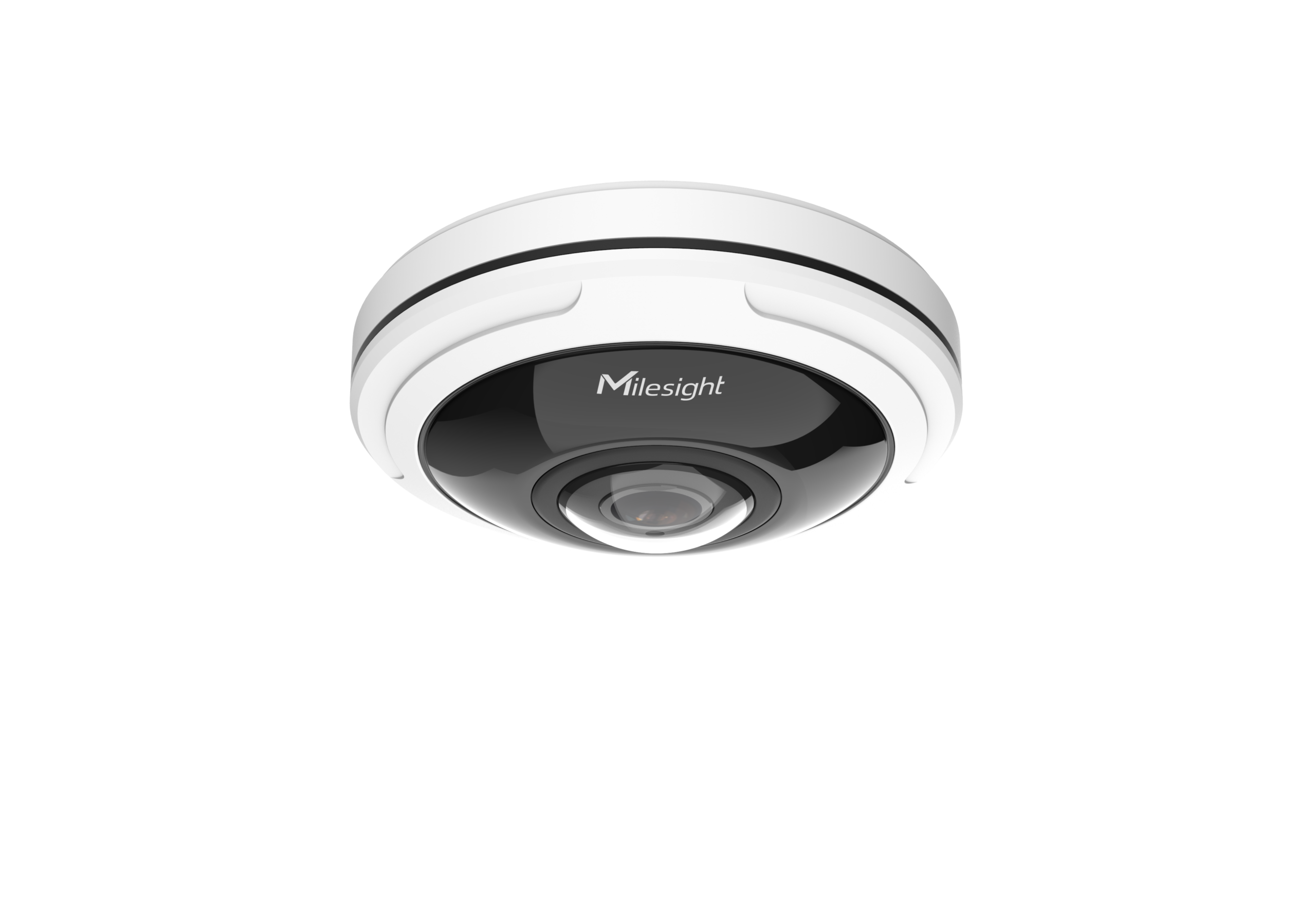

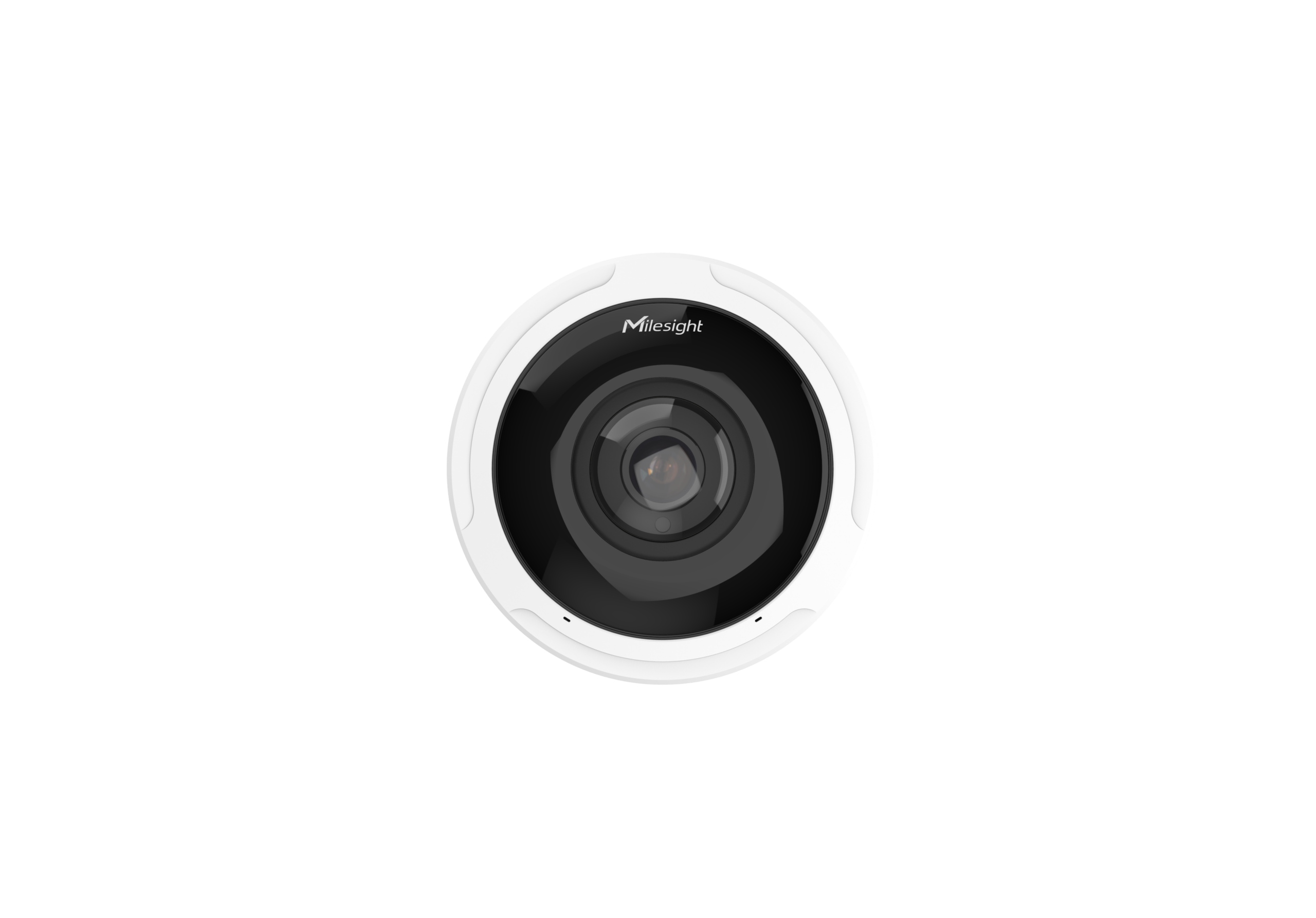

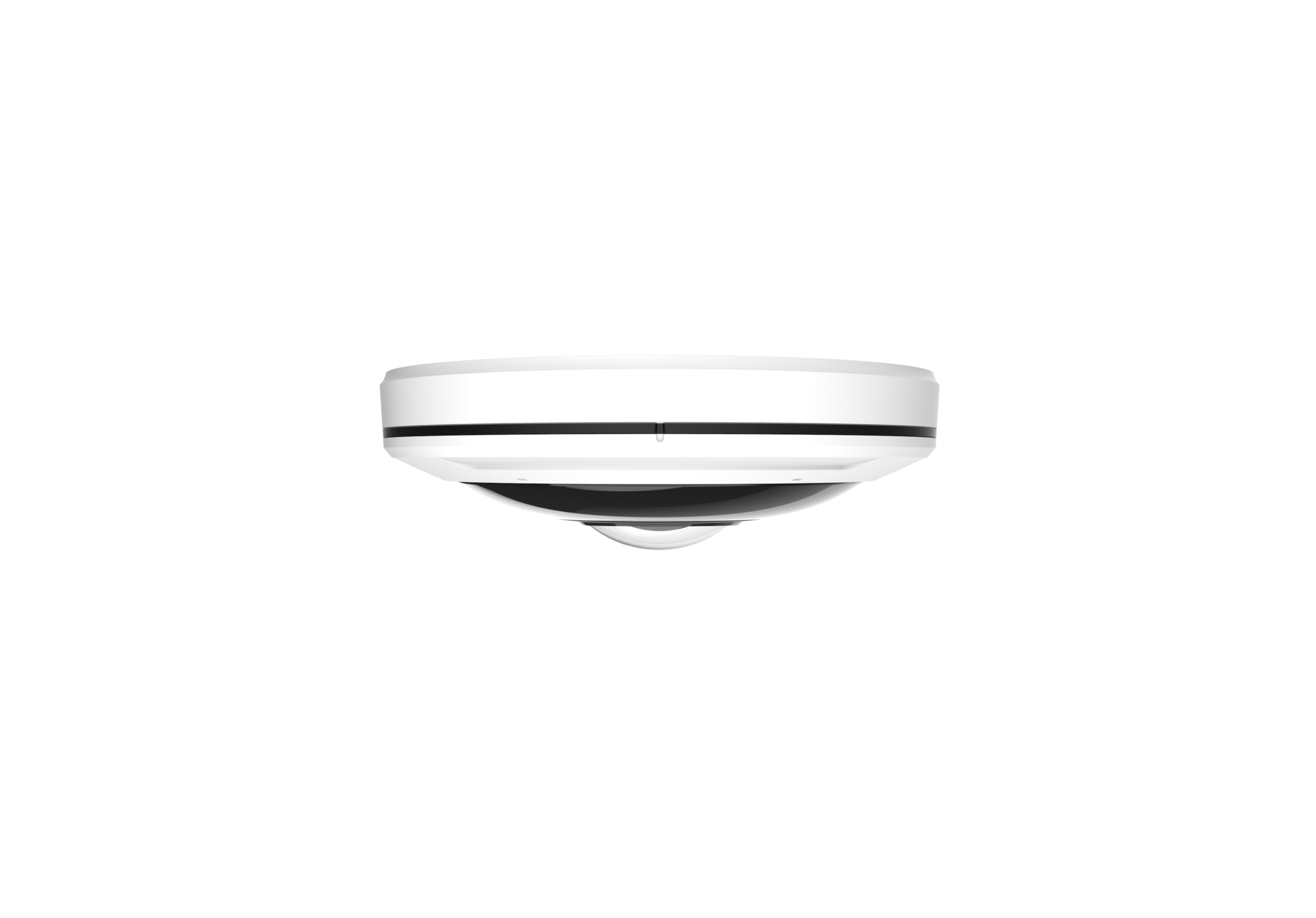

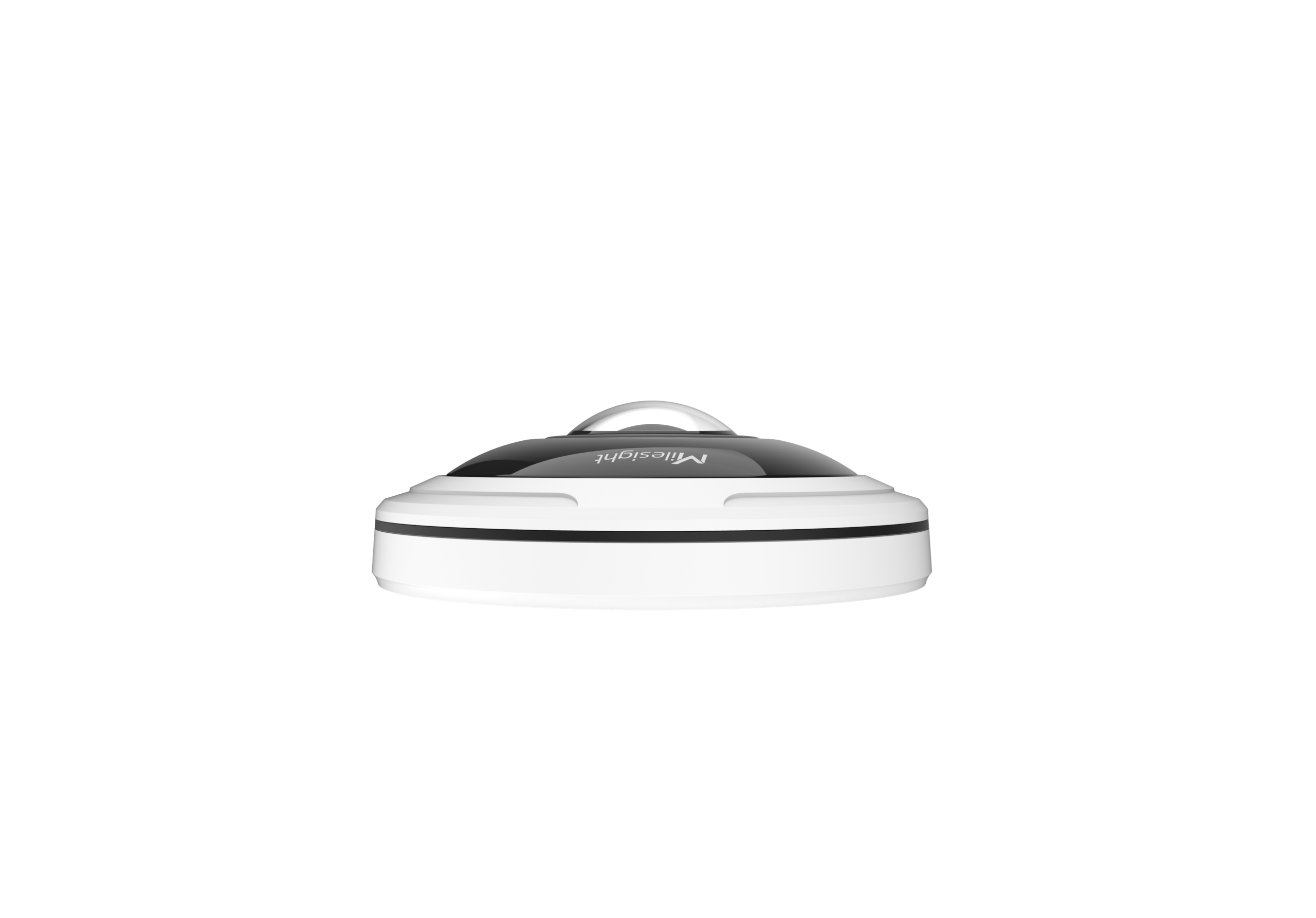

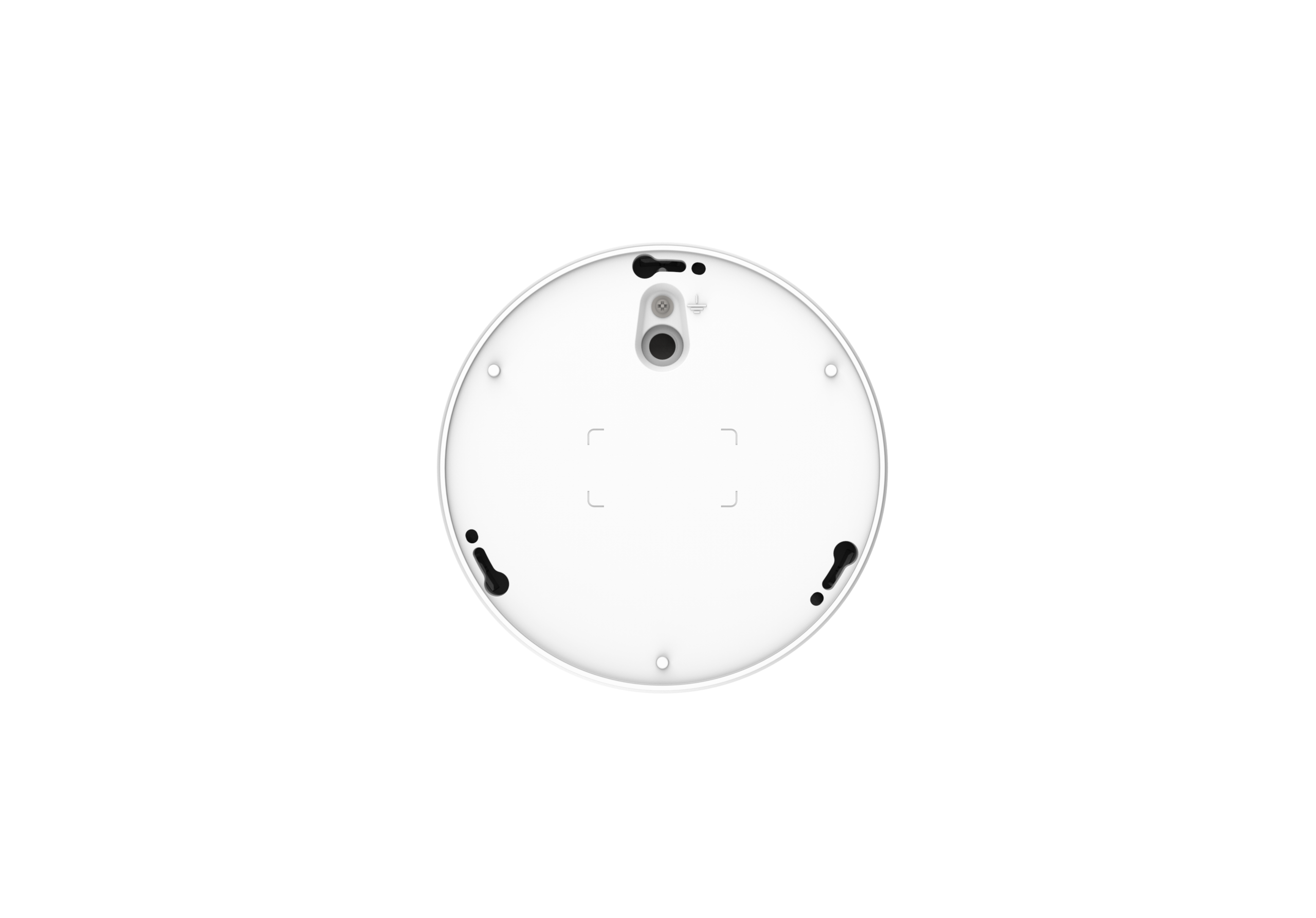

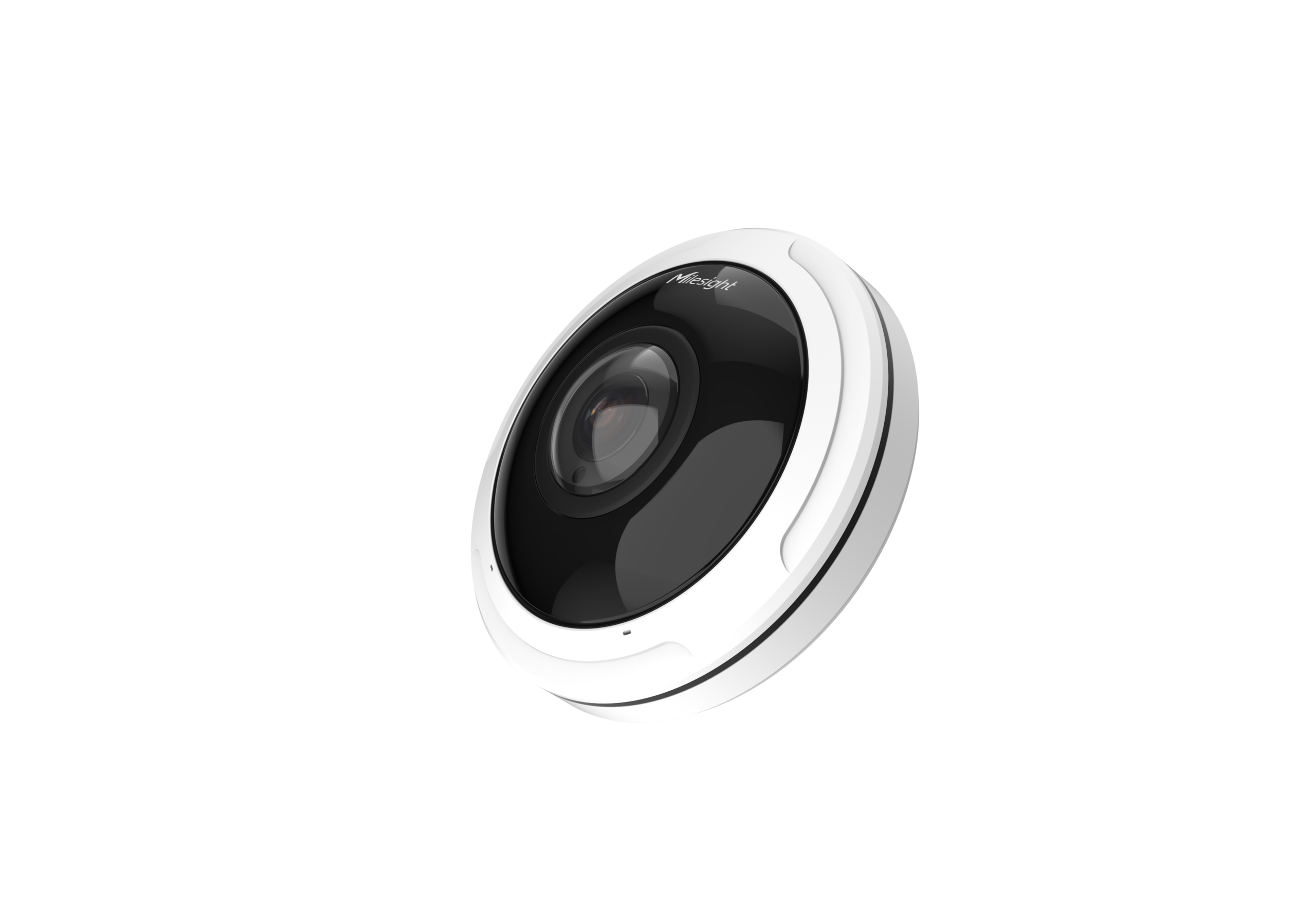

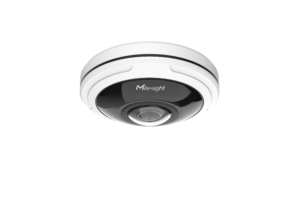

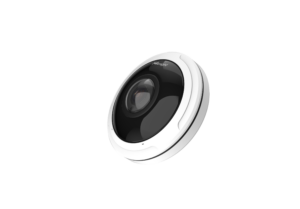

Milesight MS-C8274-PA – AI 8MP 360° Fisheye IP Camera, POE

Camera Name 8MP NDAA AI 360° Fisheye Network Camera
Image Sensor: 1/1.8″ Progressive Scan CMOS
Min. Illumination Colour: 0.005Lux @F1.2, Colour: 0.008Lux @F1.8, B/W: 0Lux with IR on
WDR 120dB Super WDR
Lens 1.5mm F1.8
Mount M12
Field of View Ceiling Mount: 360°; Wall Mount: 180°; Flat Mount: 360°
Shutter Speed 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customise/Schedule
IR Distance Up to 15m
S/N >55dB
Display Mount Mode Ceiling Mount / Wall Mount / Flat Mount
On-board dewarping/Client-side dewarping
Display Mode 11 display modes in total.
Client-side Dewarping:
Ceiling Mount: 1O, 1P, 2P, 4R, 1O3R, 1P1R, 1P4R, 1P6R, 1O8R
Wall Mount: 1 Outlet, 1 Plug, 4 Remote, 1 Outlet 3 Remote, 1 Plug 1 Remote, 1 Plug 4 Remote
Table Mount: 1x1L, 1x2L, 2x2L, 4x4R, 1x1L3x4R, 1x2L1x4R, 1x2L4x4R, 1x2L6x4R, 1x1L8x4R
On-board Dewarping
Ceiling Mount: 1O, 1P, 2P, 4R, 1O3R, 1P3R, 1O1P3R
Wall Mount: 1 Single, 1 Double, 4 Triple, 1 Single/Triple, 1 Double/Triple, 1 Single/Double/Triple
Table Mount: 1O, 1P, 2P, 4R, 1O3R, 1P3R, 1O1P3R
Note:
1. Only Fisheye in Multi-Channel Mode supports 1O1P3R.
2. The above letters O, P and R are explained as follows: O–Fisheye View; P–180° Fisheye View; 2P–2*180° Panoramic View; R–PTZ
Video Max. Input Resolution 3840×2160
Primary Stream Fisheye View
60Hz: 30fps@(2144×2144, 2048×2048, 1920×1920, 1280×1280)
50Hz: 25fps@(2144×2144, 2048×2048, 1920×1920, 1280×1280)
Secondary Stream Fisheye View:
60Hz: 30fps@(1280×960, 1024×1024, 736×736, 576×576)
50Hz: 25fps@(1280x960, 1024x1024, 736x736, 576x576)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking of up to 24 areas
ROI up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support for IE/Firefox/Chrome/Safari Browsers
Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48kHz
Audio Bit Rate 16-256kbps
Two-way Audio Support
1*RJ45 Ethernet Interface 10M/100M/1000M Ethernet Port
Built-in Microphone Audio I/O; 1/1 (Multi-interface Version)
Alarm I/O 1/1 (Multi-interface Version)
Network Network Storage NAS (Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics Video Analysis: Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting & Report Count the number of people entering or exiting, with up to 4 detection areas for regional people counting.
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256GB
Advanced Function Auto Tracking, Heat Map, Backlight Compensation (BLC), Highlight Compensation (HLC), 2D Digital Noise Reduction (DNR), 3D Digital Noise Reduction (DNR), Auto White Balance (AWB), IP Address Filtering, Automatic Gain Control (AGC), Anti-flicker, Deblur, Watermark
SIP/VoIP Support Yes, Voice & Video over IP
Event Trigger Motion Detection, Network Disconnection, Audio Alarm, External Input (Only for Multi-interface Version), etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output (only for Multi-interface Version), SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃ to 60℃
Operating Humidity 0–90% (non-condensing)
Power Supply PoE (802.3af)/DC 12V±10%
Power Consumption 6W MAX, 8W MAX (with IR on)
Weatherproof up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated metal housing
Dimensions Φ140mm X 45.4mm
Weight 700g
Naming Convention
P – PoE Supported
AI Series
